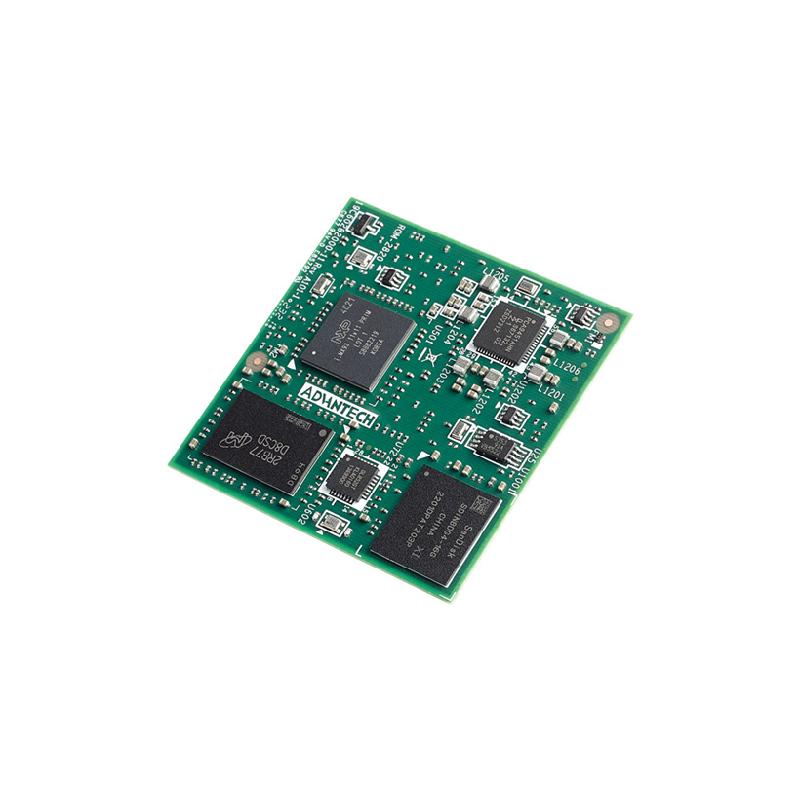

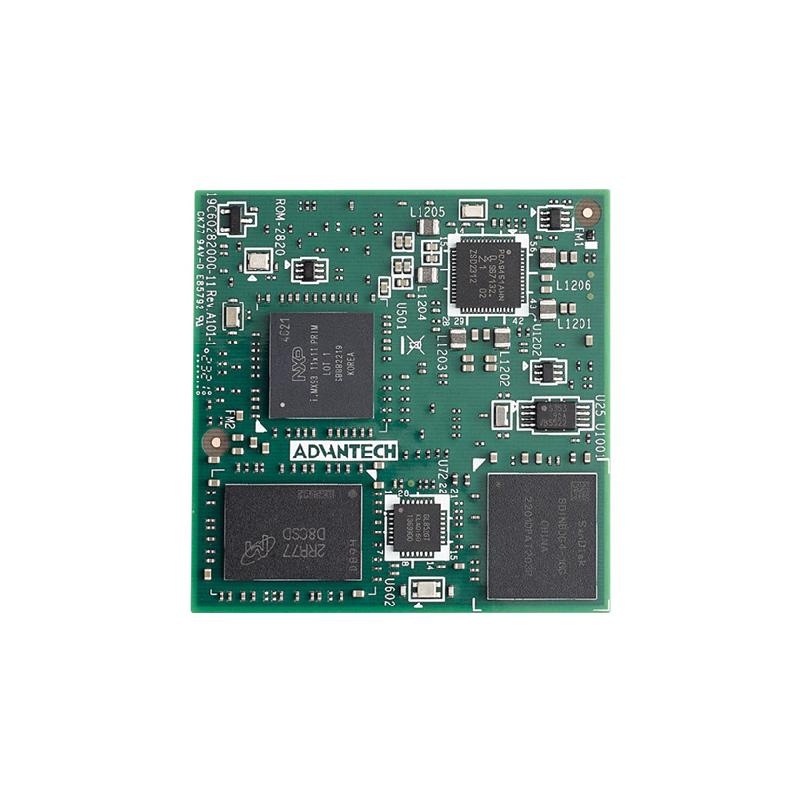

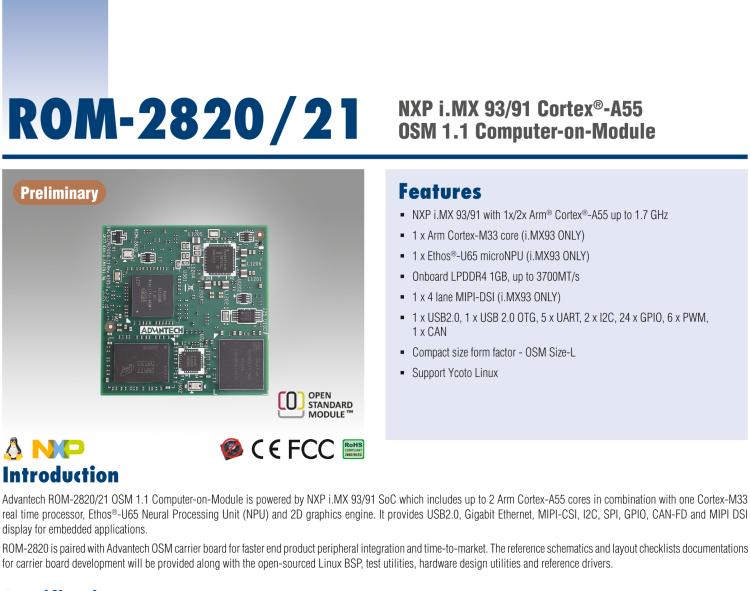

研華ROM-2820 NXP i.MX 93/91 Cortex?-A55 OSM 1.1 Computer-on-Module

• NXP i.MX 93/91 with 1x/2x Arm? Cortex?-A55 up to 1.7 GHz
• 1 x Arm Cortex-M33 core (i.MX93 ONLY)
• 1 x Ethos?-U65 microNPU(i.MX93 ONLY)
• Onboard LPDDR4 1GB memory , up to 3700MT/s
• 1 x 4 lane MIPI-DSI(i.MX93 ONLY)
• 1 x USB2.0, 1 x USB 2.0 OTG, 5 x UART, 2 x I2C, 24 x GPIO, 6 x PWM, 1 x CAN
• Compact size form factor - OSM Size-L

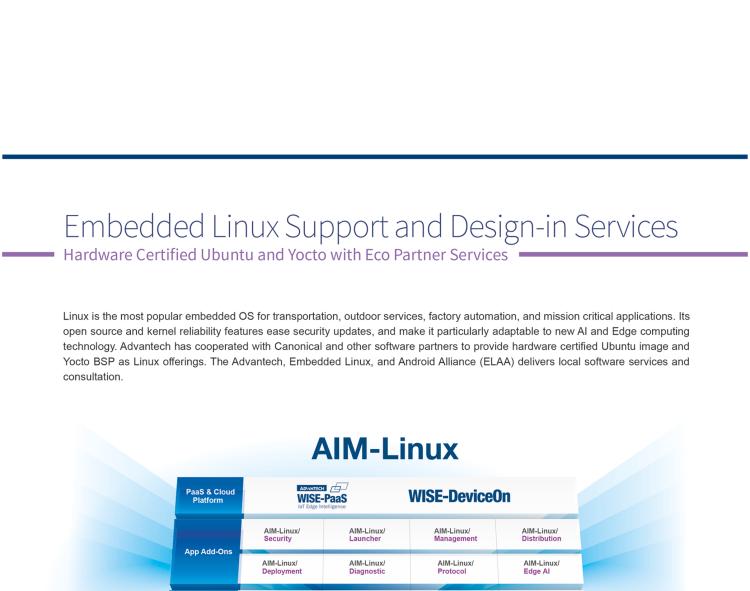

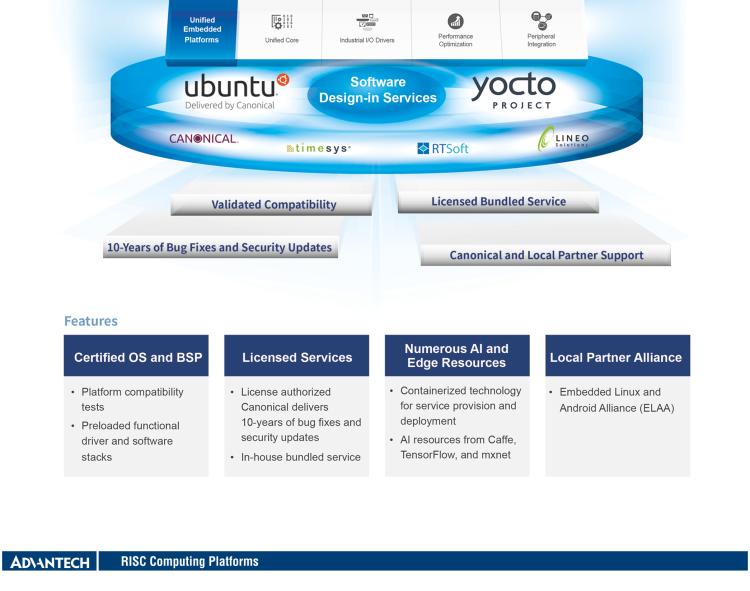

• Support Ycoto Linux
• Advantech ROM-2820/2821 OSM 1.1 Computer-on-Module is powered by NXP i.MX 93/91 SoC which includes up to 2 Arm Cortex-A55 cores in combination with one Cortex-M33 real time processors for embedded applications.
