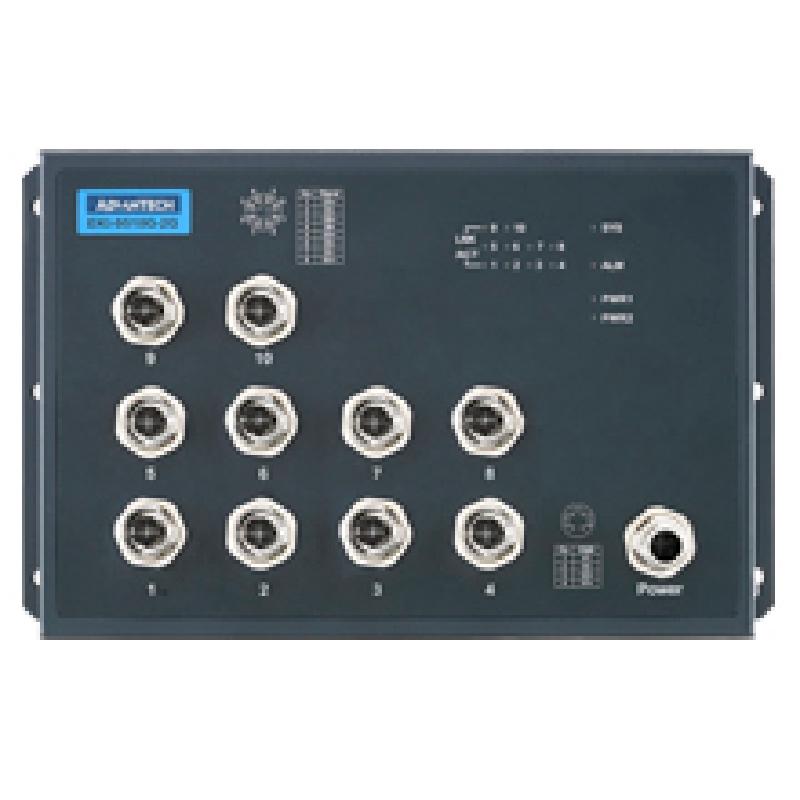

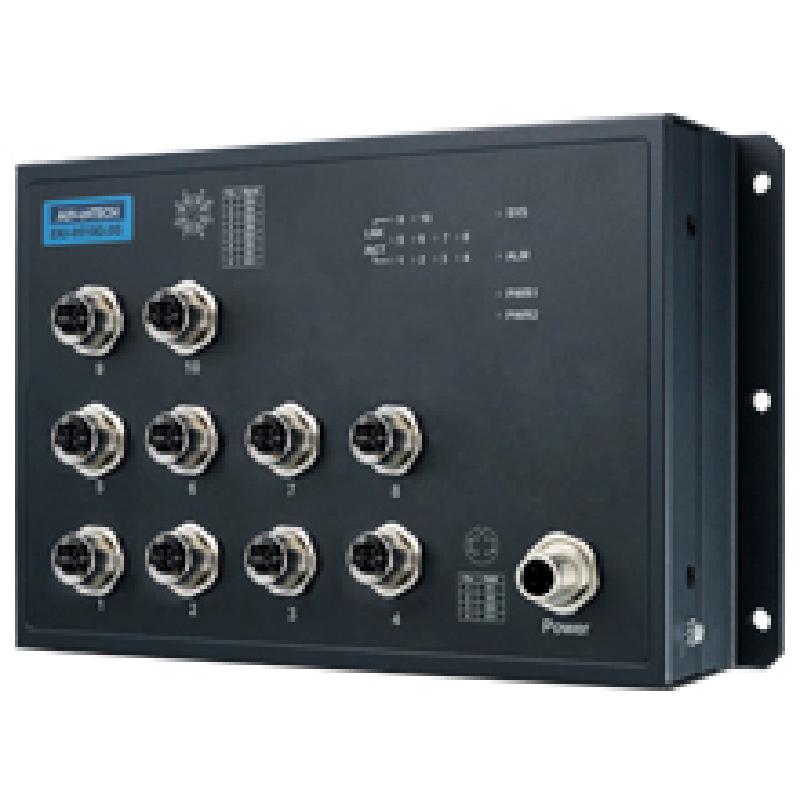

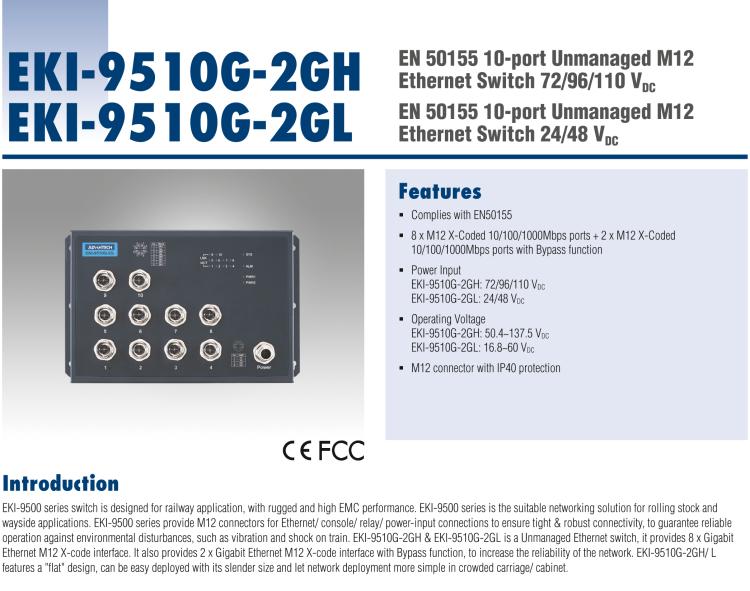

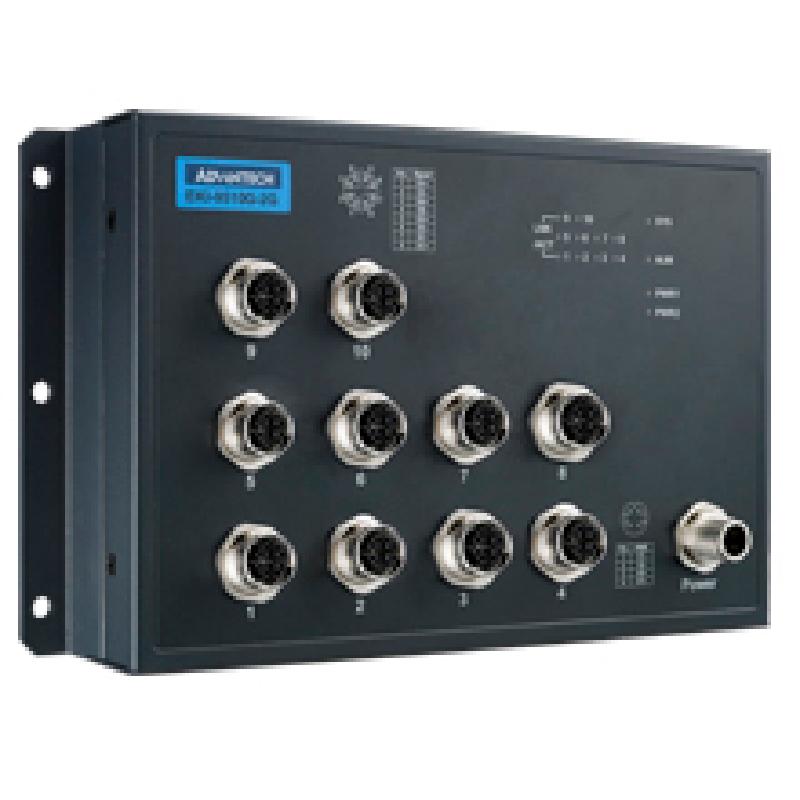

研華EKI-9510G-2GH EN50155 Unmanaged Ethernet Switch with 10xGE(2bypass), 72-110 VDC
- 8 x M12 X-Coded 10/100/1000Mbps ports + 2 x M12 X-Coded 10/100/1000Mbps ports with Bypass function
- Complies with EN50155 & EN50121-3-2
- Operating Temperature: -40~70℃
- Operating Voltage: 50.4~137.5 VDC
- M12 connector with rugged housing
- The EKI-9500 series switch is designed for railway application with rugged and high EMC performance, being suitable for networking solution for rolling stock and wayside applications. The EKI-9500 series provides M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity, and thus to guarantee reliable operation against environmental disturbances such as vibration and shock on train. The EKI-9510G-2GH & EKI-9510G-2GL are unmanaged Ethernet switch that provide 8 x Gigabit Ethernet M12 X-code interface. Each of them also provides 2 x Gigabit Ethernet M12 X-coded ports with Bypass function to increase the reliability of the network. The EKI-9510G-2GH/ L features a "flat" design which can be easy deployed with its slender size and make network deployment easier in crowded carriage/ cabinet.
